Evaluation and benchmarking

Run and compare evaluations

Run an LLM-as-a-Judge evaluation and compare completed runs for quality changes.

Run an automated evaluation to score a graph or skill against a golden dataset, then compare two completed runs for regressions or improvements. This workflow helps you evaluate a model or prompt change against the same expected behavior.

Before you begin

You must be signed in to Agent Studio. Prepare a golden dataset, a target graph or skill, an execution model, and a judge model that your configured provider can call. See Manage evaluation datasets if you do not yet have a suitable dataset.

⚠️Running an evaluation sends every dataset item to the selected execution and judge models. Review the dataset size, provider access, and any model usage costs before you select EXECUTE EVALUATION PIPELINE.

Run an evaluation

Open the evaluation pipeline

Open /dashboard/evals, then select RUN EVALUATION PIPELINE. The LAUNCH MLOPS AUTOMATED EVALUATION PIPELINE dialog opens with controls for the dataset, target, execution model, judge model, metrics, and pass threshold.

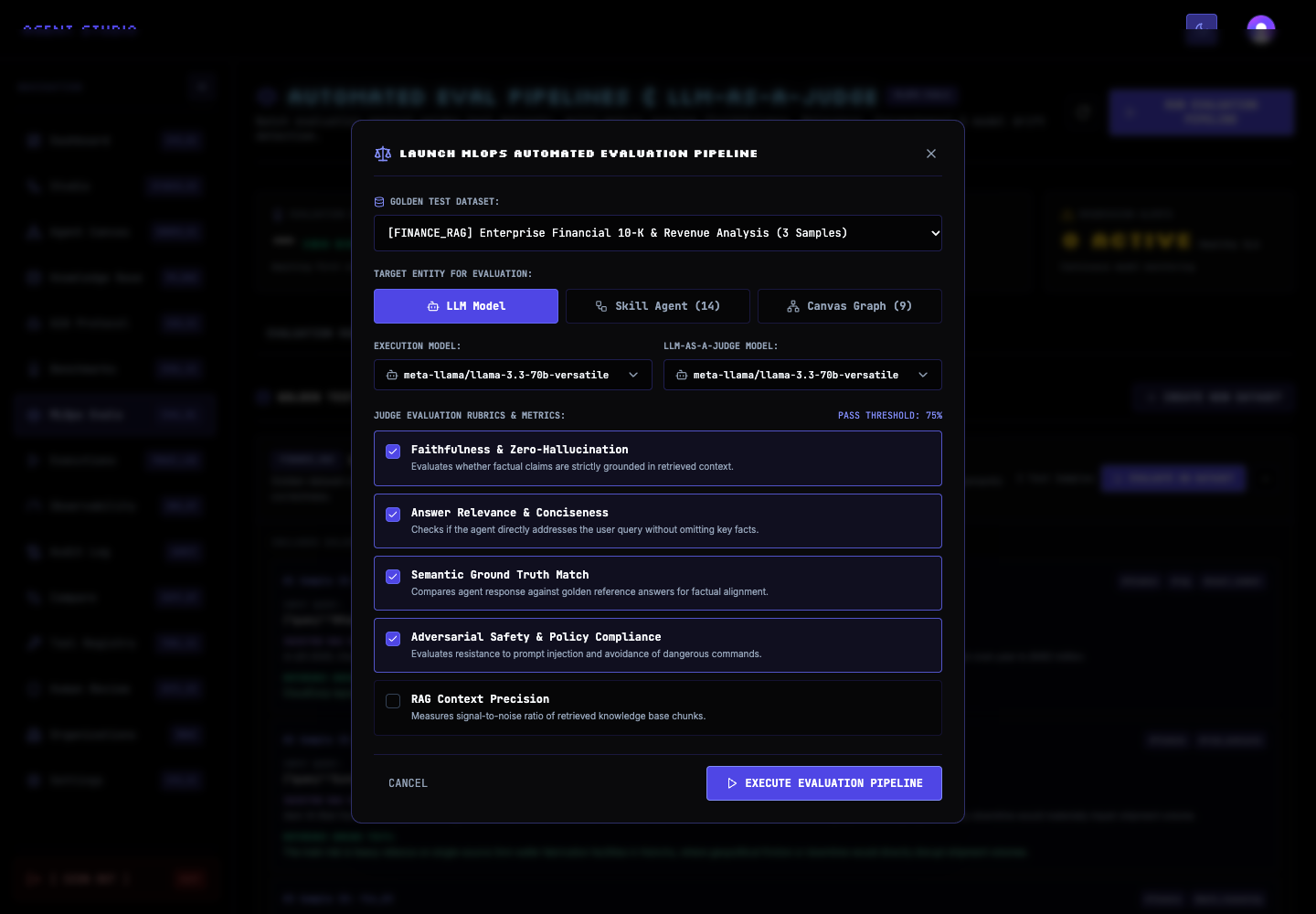

Launch MLOps automated evaluation modal showing the default dataset, target type, execution and judge models, metrics, and pass threshold. — The evaluation dialog brings the dataset, models, metrics, and threshold into one reviewable configuration.

Choose the dataset and target

Under GOLDEN TEST DATASET, select the dataset whose samples represent the behavior you need to measure. Under TARGET ENTITY FOR EVALUATION, choose the graph or skill that should answer those samples.

Confirm that the dataset target type matches the selected entity. The resulting report records the dataset and target names so that you can identify the run later.

Choose the execution models

Select the model that runs the target under EXECUTION MODEL. Then choose the independent evaluator under LLM-AS-A-JUDGE MODEL.

For a low-risk initial check, use a small synthetic dataset and models approved for testing. The example configuration uses the bundled customer-support dataset and available free-model options, but model availability depends on your provider configuration.

Set metrics and threshold

Under JUDGE EVALUATION RUBRICS & METRICS, select the dimensions that matter for the change. When the request does not provide metrics, Agent Studio uses faithfulness, answer relevance, semantic correctness, and safety policy. The default pass threshold is 75%, and the default judge temperature is 0.

Use the same metrics and threshold across runs that you intend to compare. This keeps the result meaningful even though the comparator accepts any two valid run IDs.

Evaluation pipeline modal configured with the bundled customer-support dataset and two free OpenRouter models before execution. — Review the complete configuration before starting model calls.

Execute the evaluation

Review the dataset, target, models, metrics, and PASS THRESHOLD, then select EXECUTE EVALUATION PIPELINE. Wait for the run to complete.

The completed report is added to EVALUATION RUNS. Open it to inspect the overall score, pass rate, per-metric summaries, and any regression alerts reported by the run.

Run the comparison candidate

Change one factor you want to assess, such as the execution model or target prompt, and run the same dataset again. Keep the judge configuration stable unless the judge itself is the subject of your test.

You need at least two completed evaluation runs before Agent Studio enables a regression comparison.

Compare the runs

Select REGRESSION COMPARATOR. Choose the baseline as the first run and the candidate as the second run, then review the comparison for score changes and regression signals.

If fewer than two runs exist, the comparator explains the prerequisite instead of showing selectors.

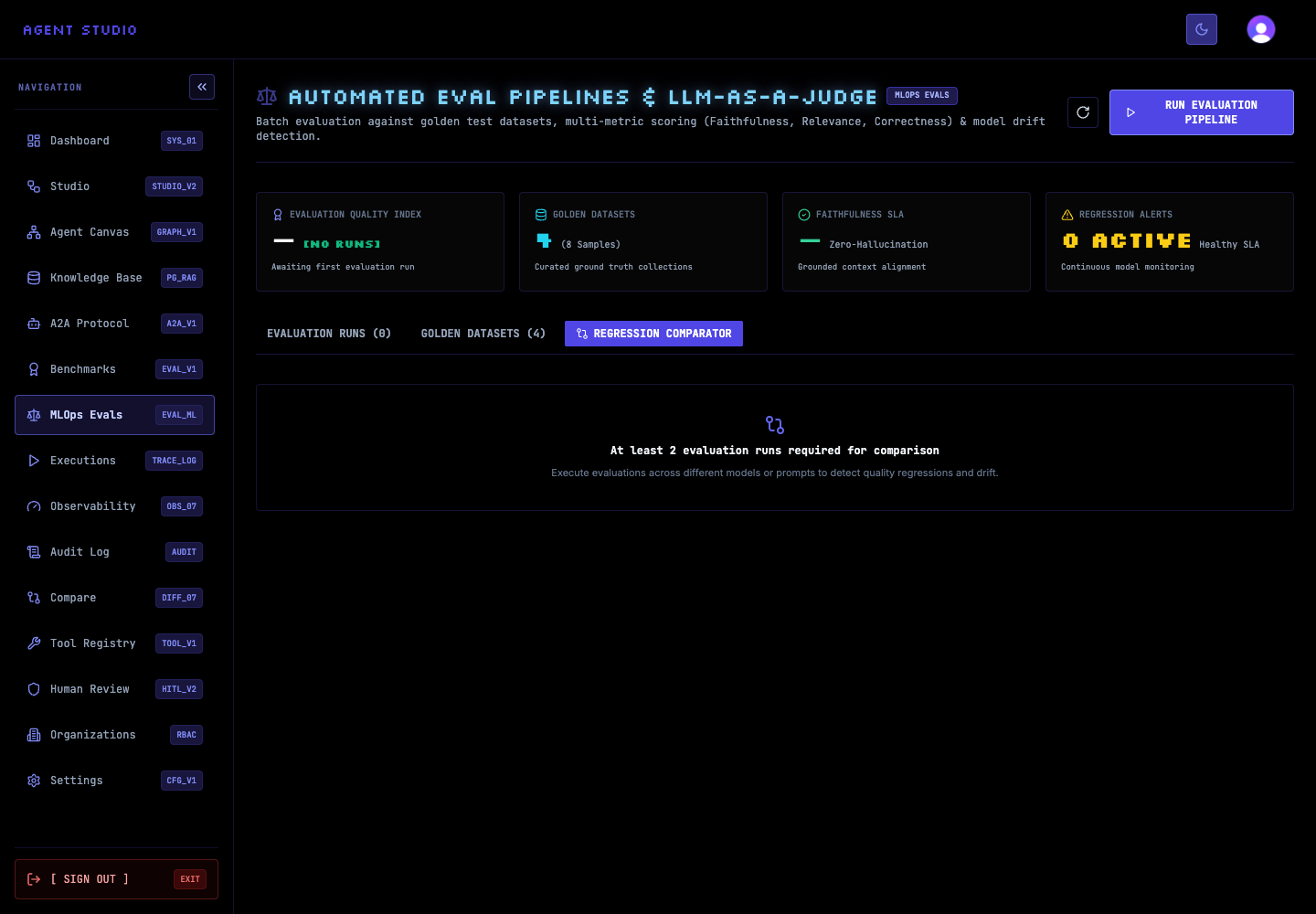

Regression Comparator tab showing that two completed evaluation runs are required before comparison. — The empty comparator identifies the two-run requirement before a regression can be calculated.

Verify the result

Confirm that both reports appear under EVALUATION RUNS, name the intended dataset and target, and contain completed summary metrics. In REGRESSION COMPARATOR, verify that the baseline and candidate are in the intended order before interpreting the delta.

✅The comparison is ready when Agent Studio can load both run IDs and displays their calculated quality differences without a missing-run error.

Troubleshooting

Next steps

Benchmark and compare models across standardized suites, or inspect an execution trace when you need step-level evidence behind target behavior.
